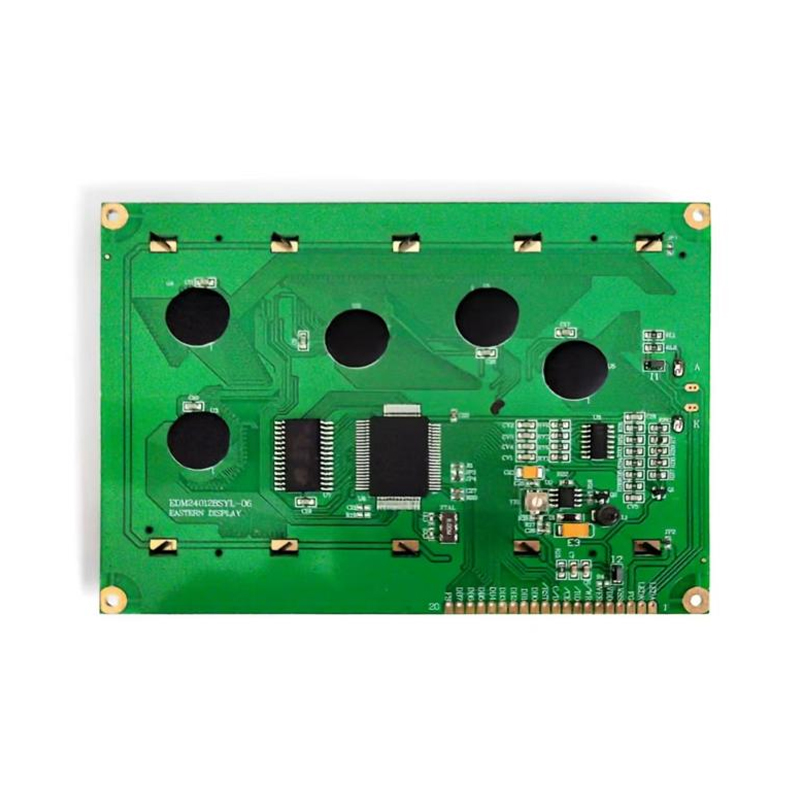

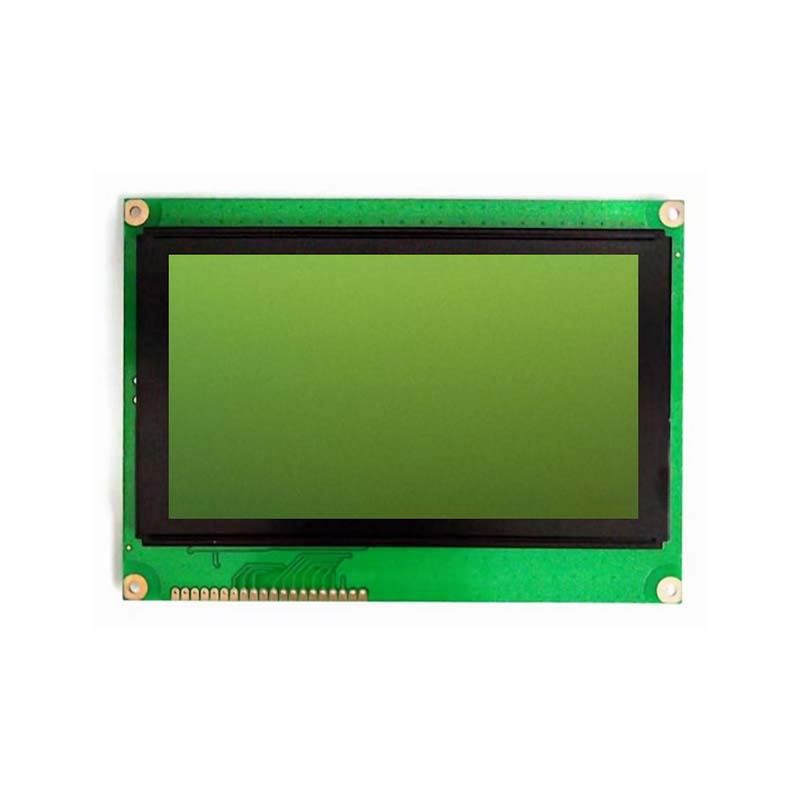

This product is a 240×128 LCD dot matrix display capable of displaying graphics at a resolution of 240 columns by 128 rows of pixels. The display features an STN yellow-green mode LED-backlit LCD, presenting black characters on a yellow-green background with high contrast and a wide viewing angle. The module integrates a driver chip and utilizes both COB and SMT manufacturing processes. It connects to the host MCU via an 8-bit parallel LCD interface and is designed to display various images and text.
This product is a 240x128 LCD dot matrix display capable of displaying graphics at a resolution of 240 columns by 128 rows of pixels. The display features an STN yellow-green mode LED-backlit LCD, presenting black characters on a yellow-green background with high contrast and a wide viewing angle. The module integrates a driver chip and utilizes both COB and SMT manufacturing processes. It connects to the host MCU via an 8-bit parallel LCD interface and is designed to display various images and text.
Graphic dot matrix display LCMs of this type are available in resolutions such as 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, and more. Customers can choose different combinations of LCD backlight and screen types according to their product requirements, and customization is also available.
| Manufacturer | Eastern?Display |
| Product model | EDM240128-06 |
| Display content | 240x128 dot matrix display |
| Background | Yellow-green |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD?controller??RA6963 |
| Module type | COB+SMT?LCD?Module |
| Connection | Zebra |
| Display type | STN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED?backlit |
| Backlight color | Yellow-green |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
